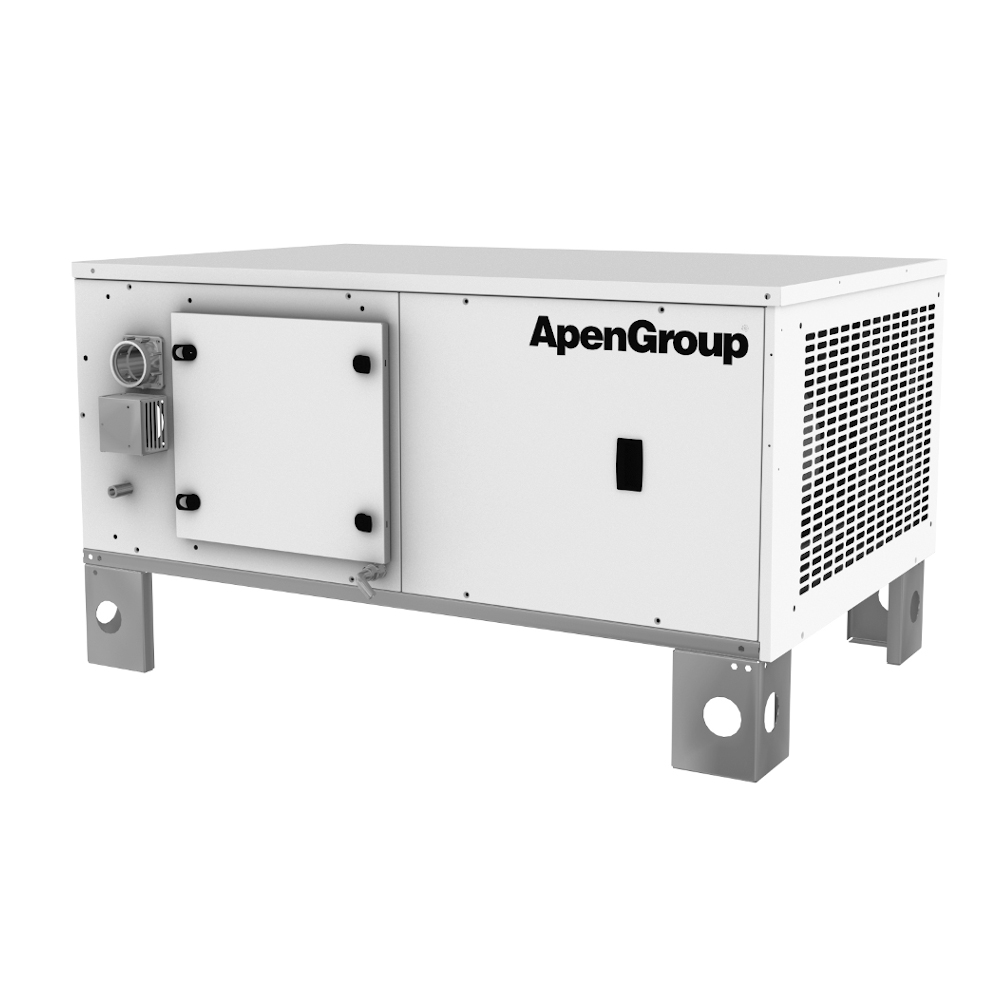

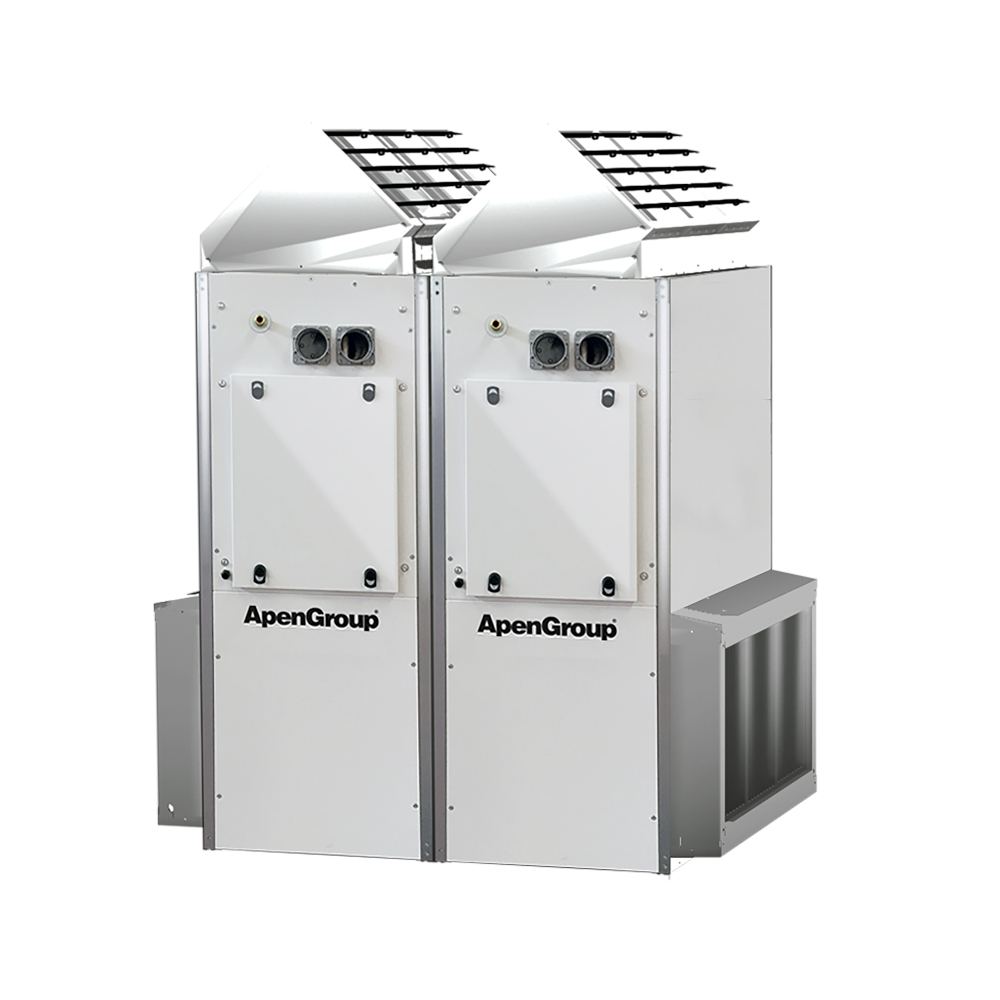

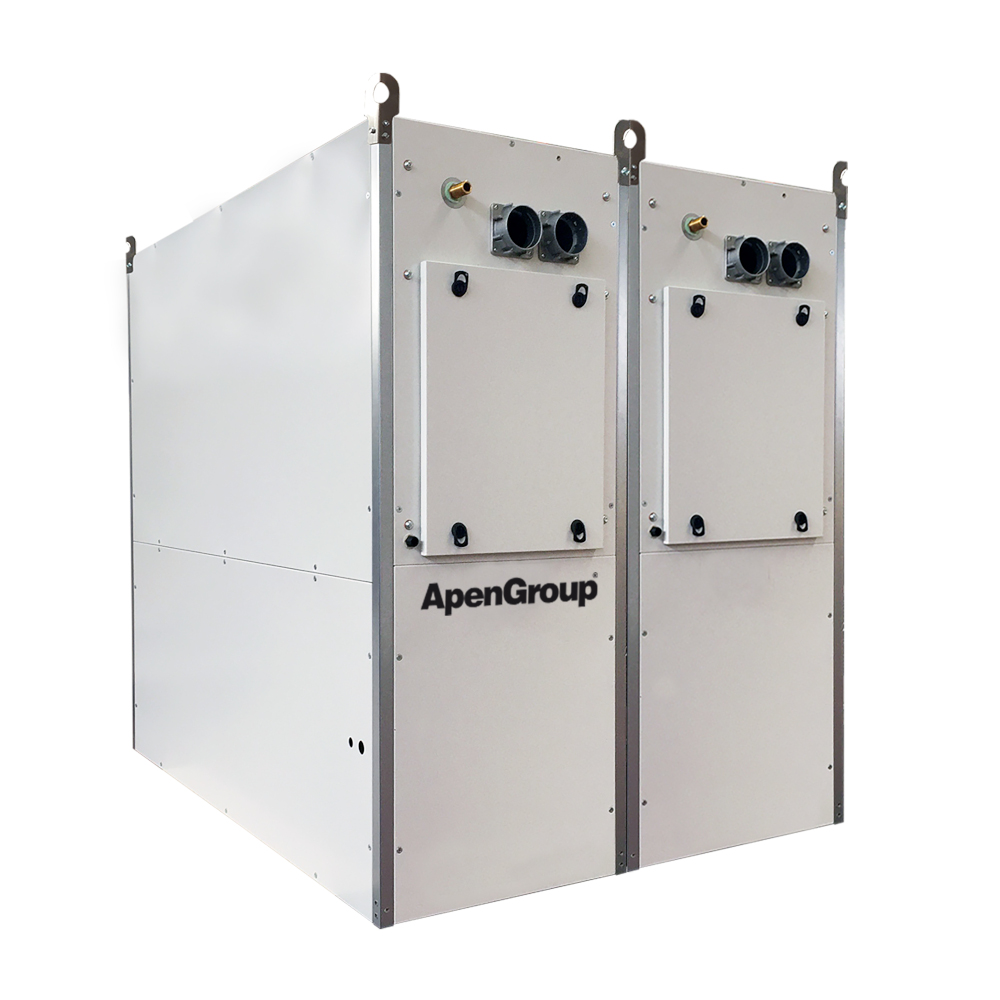

AH Series
Heating and ventilation unit.
The AH modular condensing heating unit is designed for heating the air.
Its modular structure facilitates transport and installation operations, for a one-package operational layout.
The AH series heating unit is:
- available low or high pressure configurations.
- suitable for indoor or outdoor installation.
- used in various fields of application, including the industrial, commercial, tertiary sectors, and places of worship.
- available with power ratings ranging from 34 to 388 kW, offering excellent efficiency and on-site adaptability.
- capable of generating efficiency up to 108% thanks to the PCH heater technology, which is paired with DDMP fans with integrated high efficiency inverters.
- a Plug and Play machine.

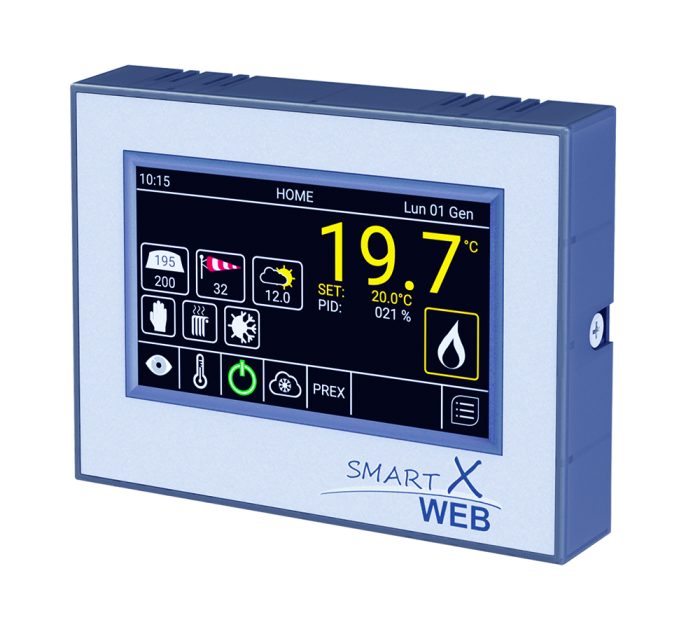

- managed by the SmartWeb remote control, which comes preconfigured based on the type of system desired, and with all the parameters necessary for the air heating unitโs optimal functionality.
Technical characteristics
- Efficiency up to 108%.
- Available with power ratings ranging from 34 kW to 388 kW.
- PCH condensing heating module housed inside.
- CPU-SMART control board for the management and signalling of faults, ignition, switching off and modulation of the burner(s).
- The gas modules switch-on and switch-off depend on the heat demand.
- Modulating temperature regulation with PID control on both the ambient temperature and the flow temperature.

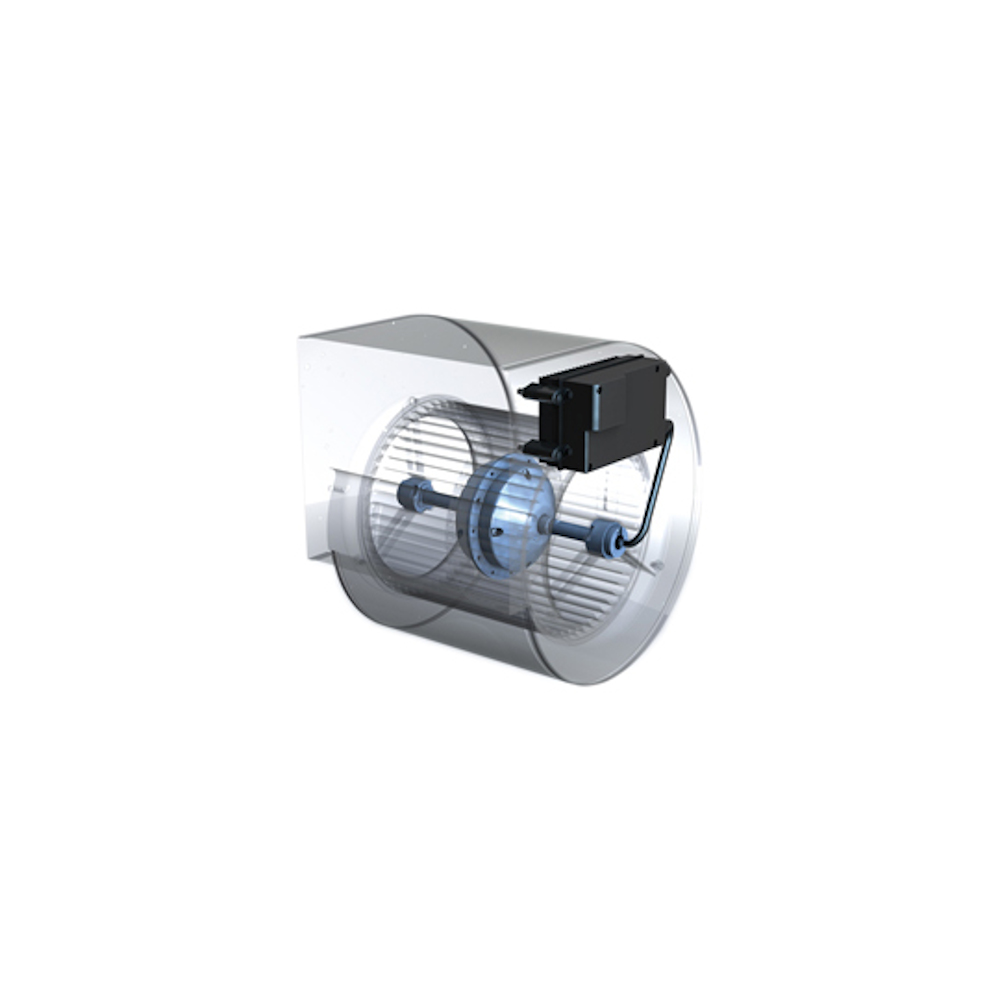

- DDMP fans with integrated high efficiency inverter.
- 400V/3F/50Hz power supply (230 V/1F/50Hz for the AH034 model).
- Variable air flow rate.
- Ethernet connection with possibility of remote control via browser.
Request information
Card Specifications
Serie AH
| MODEL | AIR FLOW mc/h | AVAILABLE PRESSURE Pa | MIN USEFUL HEAT OUTPUT kW | MAX USEFUL HEAT OUTPUT kW | Hi EFFICIENCY (N.C.V.) MIN % | Hi EFFICIENCY (N.C.V.) MAX % |
|---|---|---|---|---|---|---|
| AH034IT-01X0 | 3.210 | 190 | 8,13 | 33,56 | 106,97 | 96,30 |
| AH034IT-02X0 | 3.210 | 560 | 8,13 | 33,56 | 106,97 | 96,30 |
| AH065IT-01X0 | 6.010 | 380 | 13,40 | 62,93 | 108,06 | 96,82 |
| AH065IT-02X0 | 6.010 | 740 | 13,40 | 62,93 | 108,06 | 96,82 |
| AH105IT-01X0 | 9.280 | a richiesta | 22,77 | 97,15 | 108,40 | 97,15 |
| AH105IT-02X0 | 9.280 | 190 | 22,77 | 97,15 | 108,40 | 97,15 |
| AH160IT-01X0 | 15.300 | a richiesta | 17,77 | 160,06 | 108,35 | 97,60 |
| AH160IT-02X0 | 15.300 | 355 | 17,77 | 160,06 | 108,35 | 97,60 |
| AH210IT-01X0 | 18.560 | a richiesta | 22,77 | 194,30 | 108,40 | 97,15 |
| AH210IT-02X0 | 18.560 | 190 | 22,77 | 194,30 | 108,40 | 97,15 |
| AH320IT-01X0 | 27.840 | a richiesta | 22,77 | 291,45 | 108,40 | 97,15 |
| AH320IT-02X0 | 27.840 | 190 | 22,77 | 291,45 | 108,40 | 97,15 |
| AH420IT-01X0 | 37.120 | a richiesta | 22,77 | 388,60 | 108,40 | 97,15 |
| AH420IT-02X0 | 37.120 | 190 | 22,77 | 388,60 | 108,40 | 97,15 |
