Kondensa Hybrid series LKH

Hybrid warm air heater

Kondensa Hybrid series LKH

Hybrid warm air heater

Apen Group has designed and developed a new solution for the use of gas heater in a world where much more attention is paid to green needs.

LKH is a hybrid warm air heater where there is a perfect combination between new green energy (thanks to heat pump – 14kW) and traditional gas warm air heater (thanks to the high efficiency unit heater – 30kW).

LKH is the green variant of the KONDENSA LK Series to heat (and cool) industrial and commercial areas and sporting halls.

Kondensa series heater features:

  • High quality materials, such as AISI 441 stainless steel, pre-painted panels and state-of-the-art electronics.
  • High efficiency (up to 108%)
  • Pre-mixing combustion systems, with extremely low levels of pollutant emissions.
  • Innovative and efficient production systems.
  • Reliability and safety guaranteed by 100% factory testing.

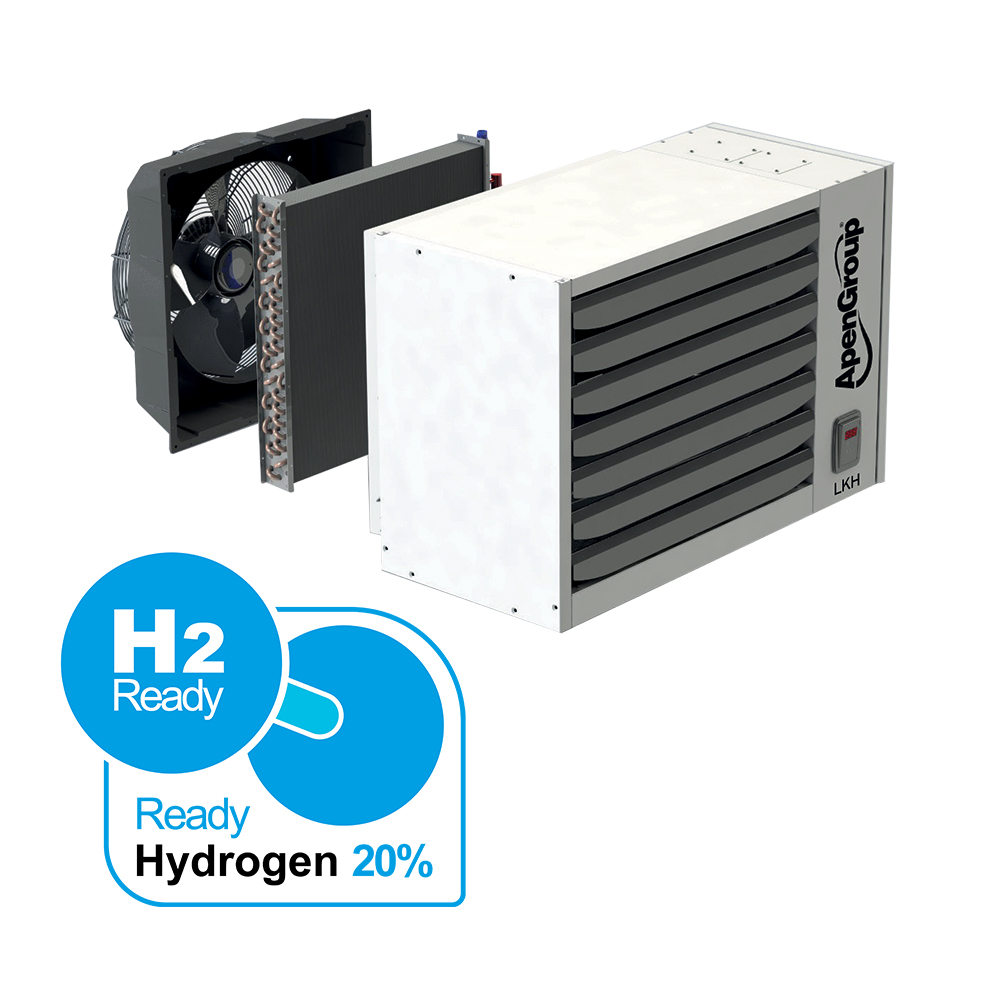

  • Designed and certified for working with mixture of Gas and Hydrogen (up to 20%)

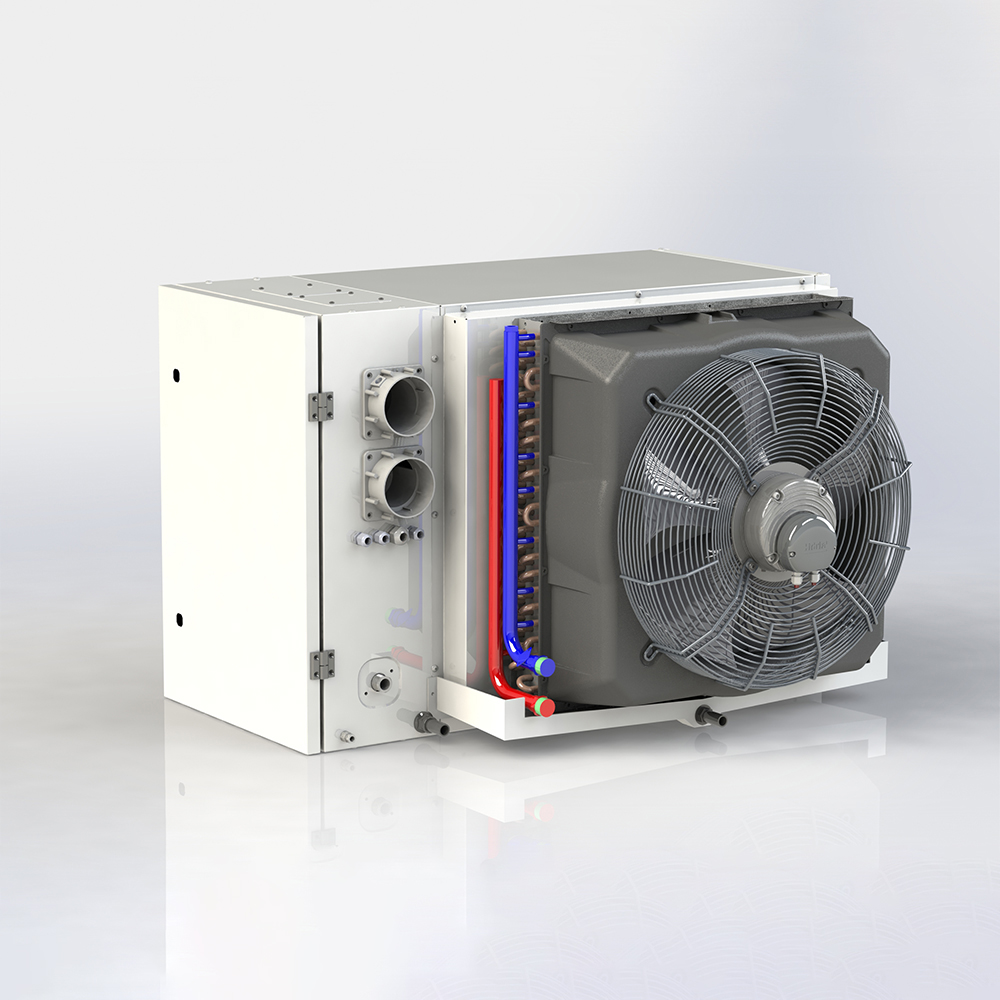

Water battery features:

  • Aluminum copper battery
  • the EC axial fan has an air flow rate of 4500 m3/h (0-10 VdC)
  • heating (up to 15kW) and cooling (up to 12kW)

Installation features:

  • Easy to install thank to the compact dimensions
  • Compliant with the new โ€œgreen local regulationโ€
  • Excellent solution for replacing existing gas system with electric unit

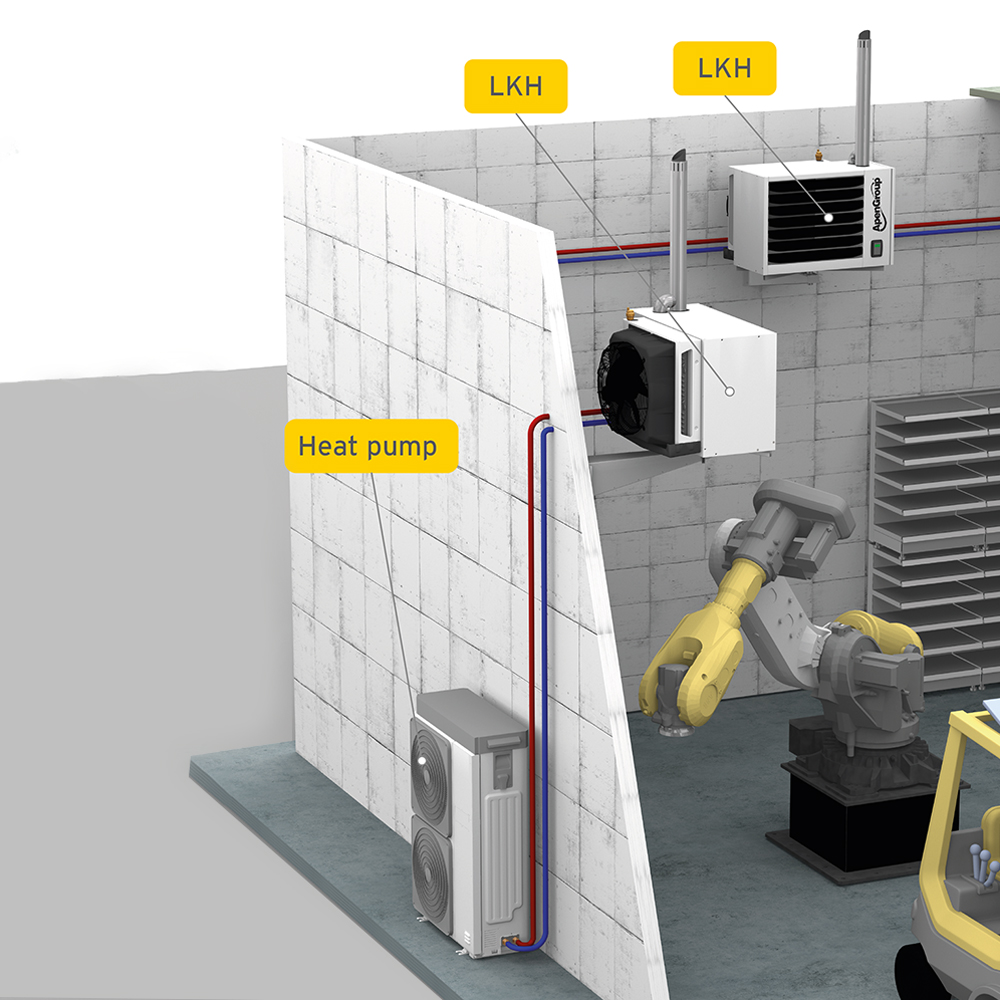

  • Ready for all the Heat Pump

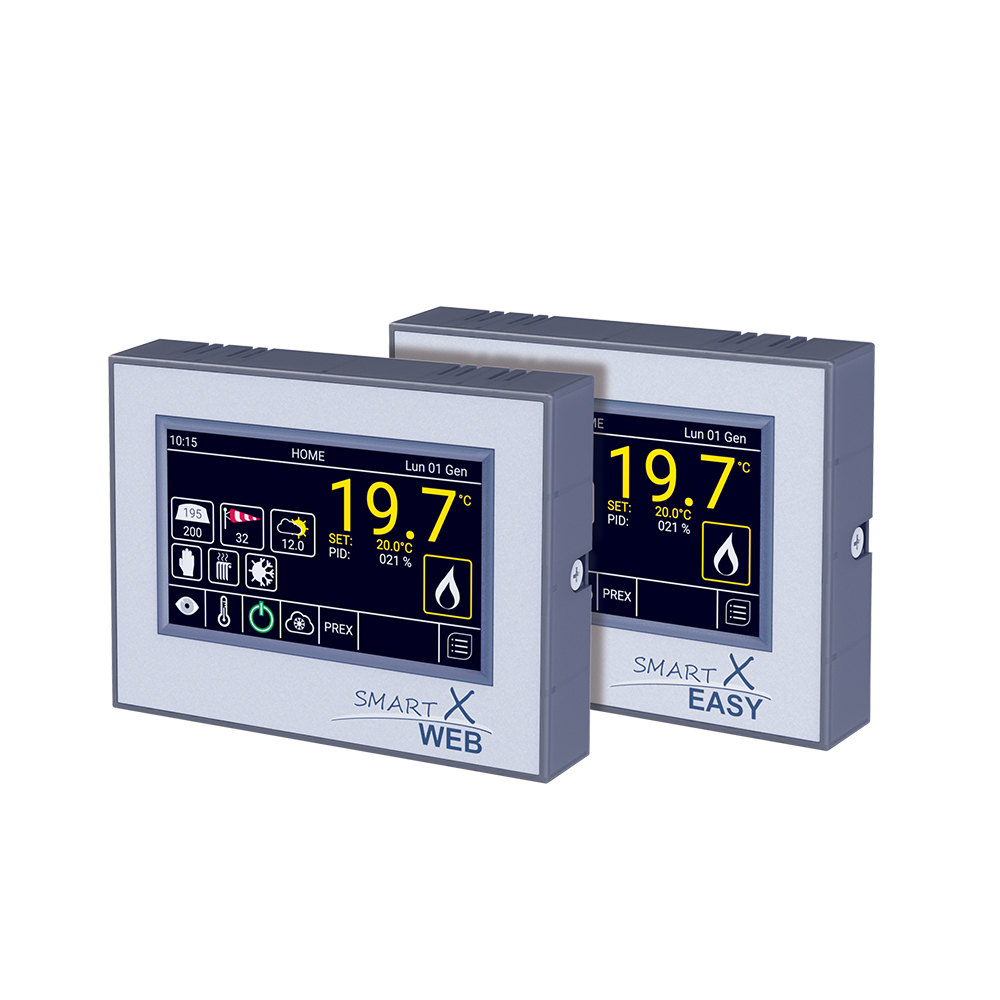

  • User-Friendly Smart X control
  • Sustainable operation
  • Reduce gas/energy consumption
  • Low noise emission

Attention
Do not install where leakages of oils in the atmosphere (e.g. dietary fats) are present.
Do not use in particularly aggressive environments or with potentially corrosive atmospheres (for example in environments with animal or livestock farms) which can generate corrosion or rust on the metal parts of the unit heater components.
Do not use in extreme operating conditions or in any case outside the operating fields foreseen by the manufacturer.

Technical characteristics

  • Power rating of 44kW (14kW + 30kW)
  • CPU-SMART control board for the management and signaling of faults, ignition, switching off and modulation of the burner(s) and the main function of the heat pump
  • CE approval in compliance with all applicable regulations.
  • The gas modules switch-on and switch-off depend on the heat demand, giving the priority function to the heat pump
  • Modulating temperature regulation with PID control on both the ambient temperature and the flow temperature
  • Variable air flow rate

Request information

Card Specifications

MODELMIN AIR FLOW mc/hMAX AIR FLOW mc/hMIN NOMINAL HEAT INPUT kWMAX NOMINAL HEAT INPUT kWMIN USEFUL HEAT OUTPUT kWMAX USEFUL HEAT OUTPUT kWHI EFFICIENCY (N.C.V.) min %HI EFFICIENCY (N.C.V.) max %
LKH044206038207,530,08,1 28,8108,096,0
