Series G0
Designed for use in Industrial Processes

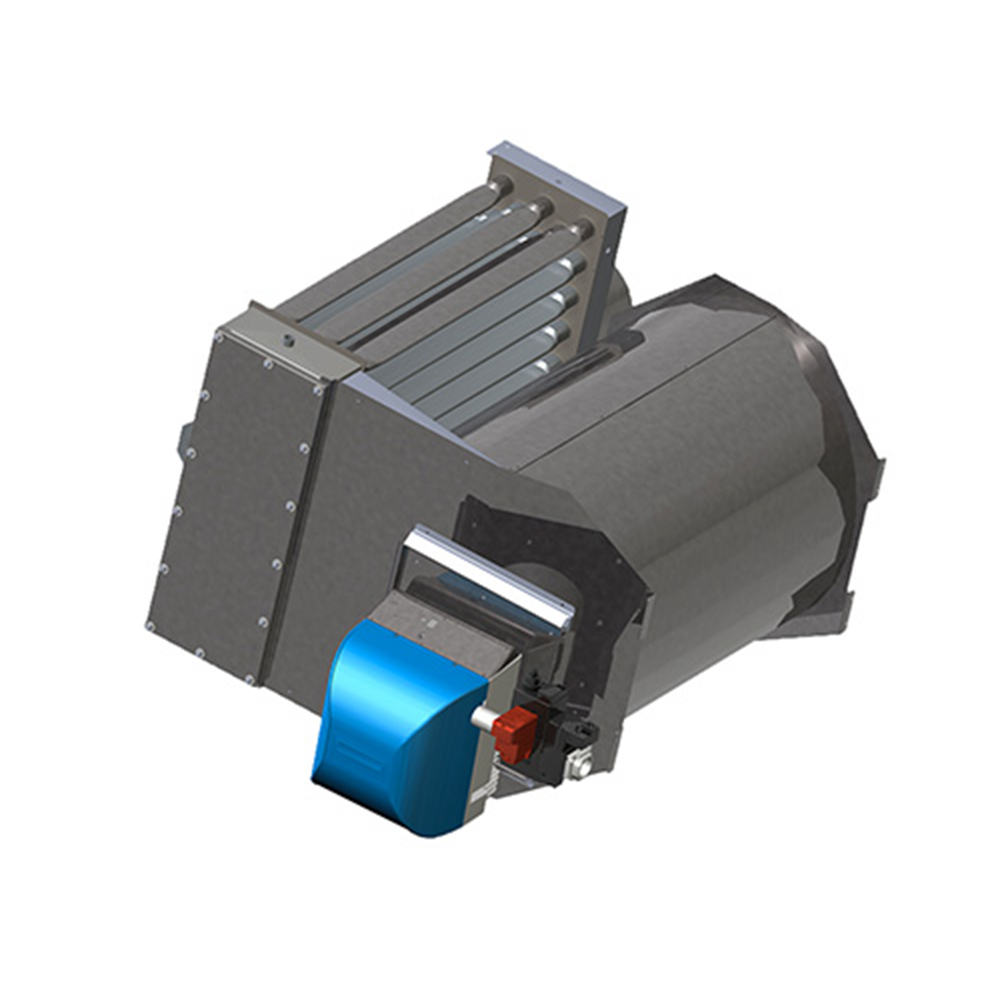

Heat exchanger module available in AISI 441 and AISI 310 stainless steel.
Particularly suitable for use in industrial processes. To operate, the module needs to be placed inside an adequately insulated structure and paired with a liquid or gas fuel burner.
Technical characteristics
- Combustion chamber made from AISI 441 stainless steel, with a large exchange surface area.
- Flame reversing furnace, with combustion circuit with three flue passes, fully welded.
- High-efficiency, low-carbon AISI 441 stainless steel heat exchanger consisting of a conical cross-section tube bundle with an aerodynamic profile (low air-side pressure loss and high efficiency).
- Two power ranges.
- Patented tube bundle (Patent no. MI94U00260 of 8 April 1994).
- Efficiency up to 94.6%.
- CE approval in compliance with all applicable regulations.
Download Area
Request information
Card Specifications
G0 SERIE
| EXCHANGER | MIN NOMINAL HEAT INPUT kW | MAX NOMINAL HEAT INPUT kW | MIN USEFUL HEAT OUTPUT kW | MAX USEFUL HEAT OUTPUT kW | EFFICIENCY MIN % | EFFICIENCY MAX % |
|---|---|---|---|---|---|---|
| G07780 | 68,5 | 137,0 | 64,3 | 120,1 | 93,9 | 87,7 |
| G07880 | 96,0 | 195,0 | 90,2 | 171,0 | 94,0 | 87,7 |
| G07980 | 115,0 | 230,0 | 108,1 | 205,9 | 94,0 | 89,5 |
| G08080 | 154,0 | 310,0 | 145,6 | 275,0 | 94,5 | 88,7 |
| G08180 | 185,0 | 380,0 | 173,9 | 335,9 | 94,0 | 88,4 |
| G08280 | 260,0 | 508,0 | 245,4 | 450,0 | 94,4 | 88,6 |
| G08380 | 320,0 | 670,0 | 301,0 | 592,0 | 94,1 | 88,4 |
| G08480 | 397,0 | 818,0 | 374,0 | 730,0 | 94,2 | 89,2 |
| G08580 | 447,0 | 1028,0 | 422,0 | 920,0 | 94,4 | 89,5 |
| G08680 | 617,0 | 1170,0 | 583,7 | 1049,5 | 94,6 | 89,7 |
