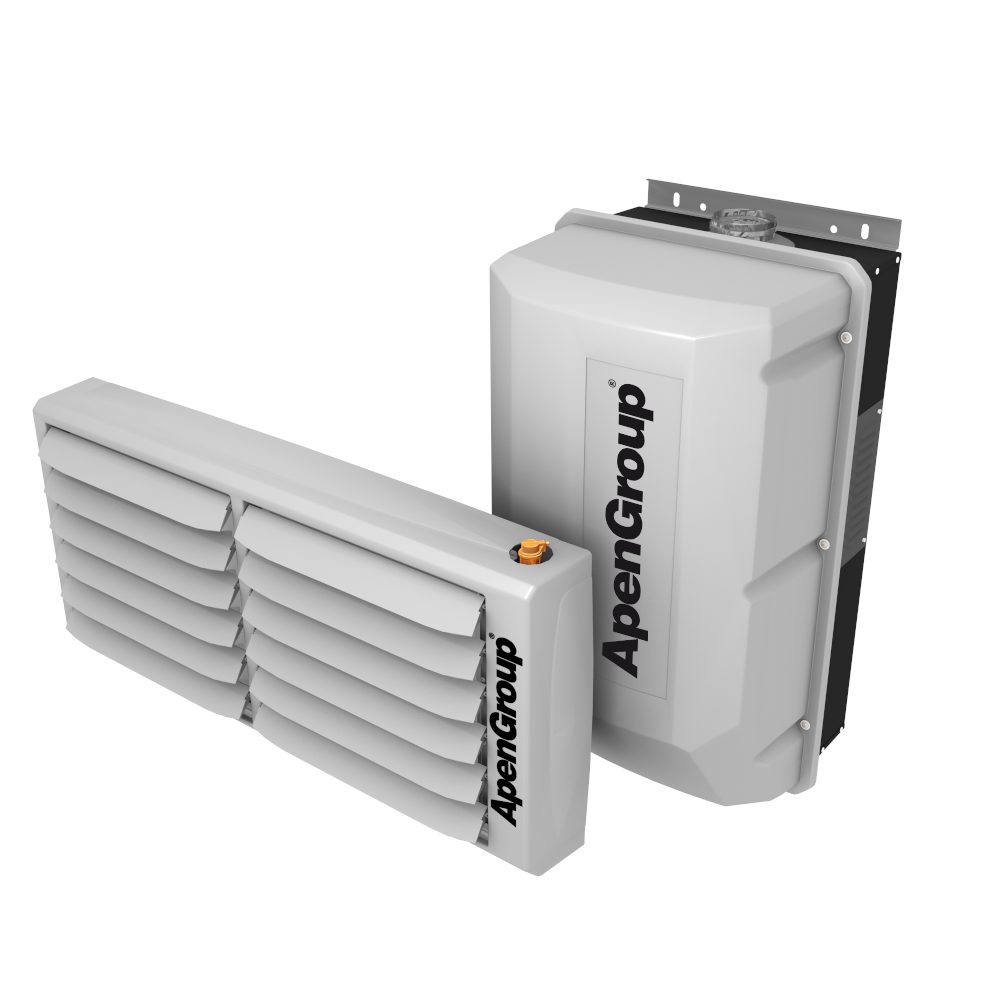

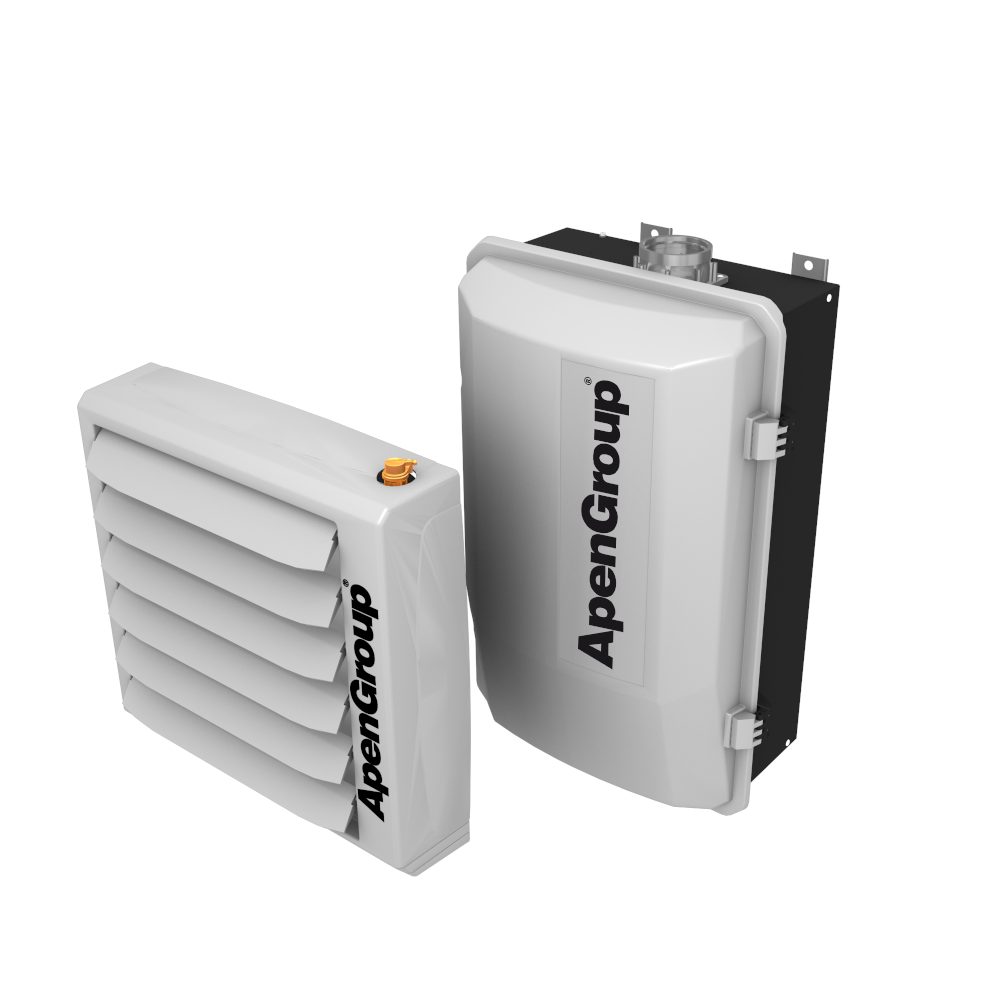

AKN Condensing Boiler + AX Water Fan Heater System
Ideal where the law prohibits the installation of direct exchange heating systems within the environment.

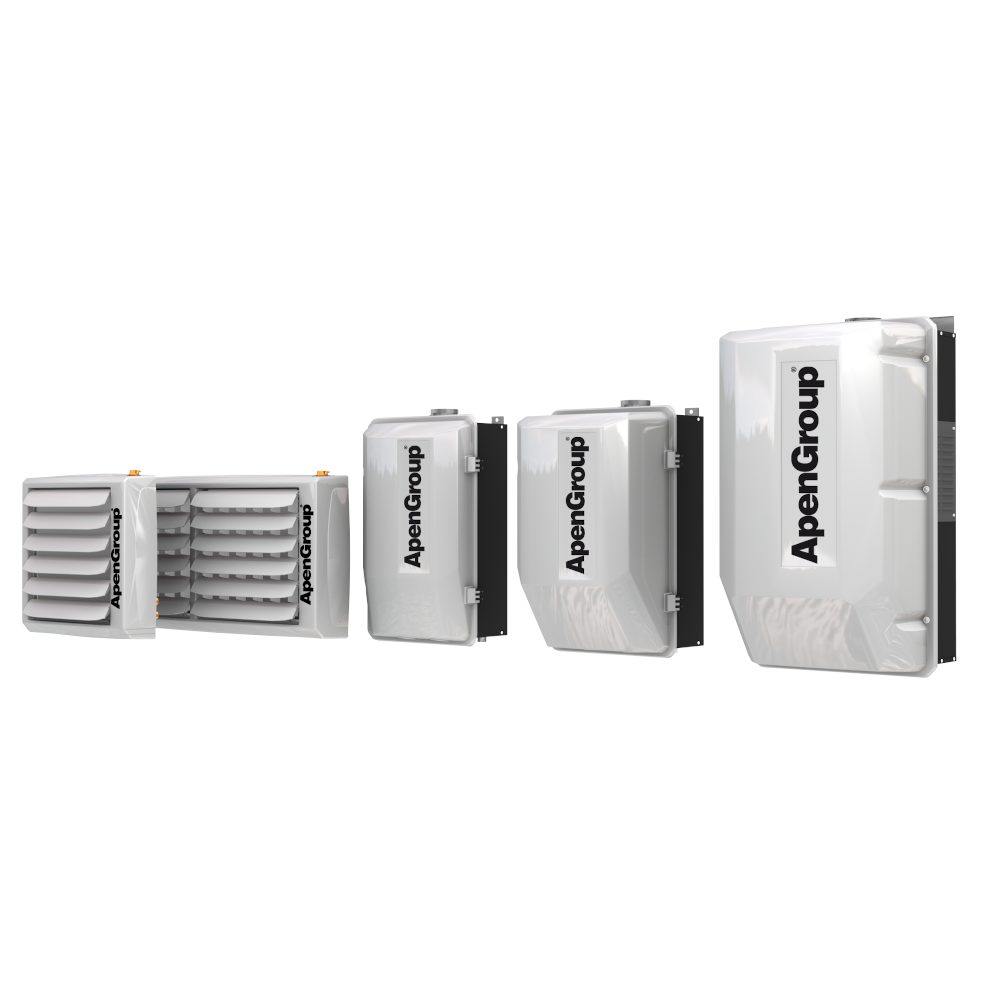

The AquaKond AKN system consists of an indoor and outdoor condensing boiler with a low NOx burner, available in 34 kW, 50 kW, 70 kW and 100 kW versions, which can be combined with water fan heaters. The project was conceived and realised with the aim of obtaining a product of the highest quality in terms of technology, ecology, and design.
Class A
High combustion efficiencies of up to 109% ensure significant fuel savings compared to traditional non-condensing systems. Class A Energy efficiency (according to Reg. 811/2013/EC). Premixed burner in NOx 6 class according to EN15502-1.
Use
Do not install where leakages of oils in the atmosphere (e.g.dietary fats) are present.
Do not use in particularly aggressive environments or with potentially corrosive atmospheres (for example in environments with animal or livestock farms) which can generate corrosion or rust on the metal parts of the unit heater components.
Do not use in extreme operating conditions or in any case outside the operating fields foreseen by the manufacturer.
Technical characteristics
- Casing made of metallised ABS methacrylate.
- Very high operating efficiency up to 108%.
- Class 6 low-NOx pre-mixed modulating burner compliant with the EN15502-1 standard.
- Low carbon stainless steel heat exchanger.
- IPX5D Protection rating.
- Microprocessor-controlled electronic equipment with self-testing functions for the management of all burner command and control operations.
- Multifunctional LCD screen for boiler control and diagnostics.
Card Specifications
AKN Boiler
| MODEL | USEFUL HEAT OUTPUT (72/45°C) kw | HEAT INPUT kw | EFFICIENCY (WATER TEMPERATURE 72/45°C) |
|---|---|---|---|
| AKN 034 | Min 7 – Max 35,4 | Max 34,8 | Min 103,5 – Max 101,8 |
| AKN 050 | Min 8,5 – Max 50,6 | Max 49,9 | Min 101,7 – Max 101,5 |
| AKN 070 | Min 12,3 – Max 70,5 | Max 69,6 | Min 104 – Max 101,3 |
| AKN 100 | Min 17,3 – Max 97,6 | Max 96,6 | Min 104 – Max 101 |

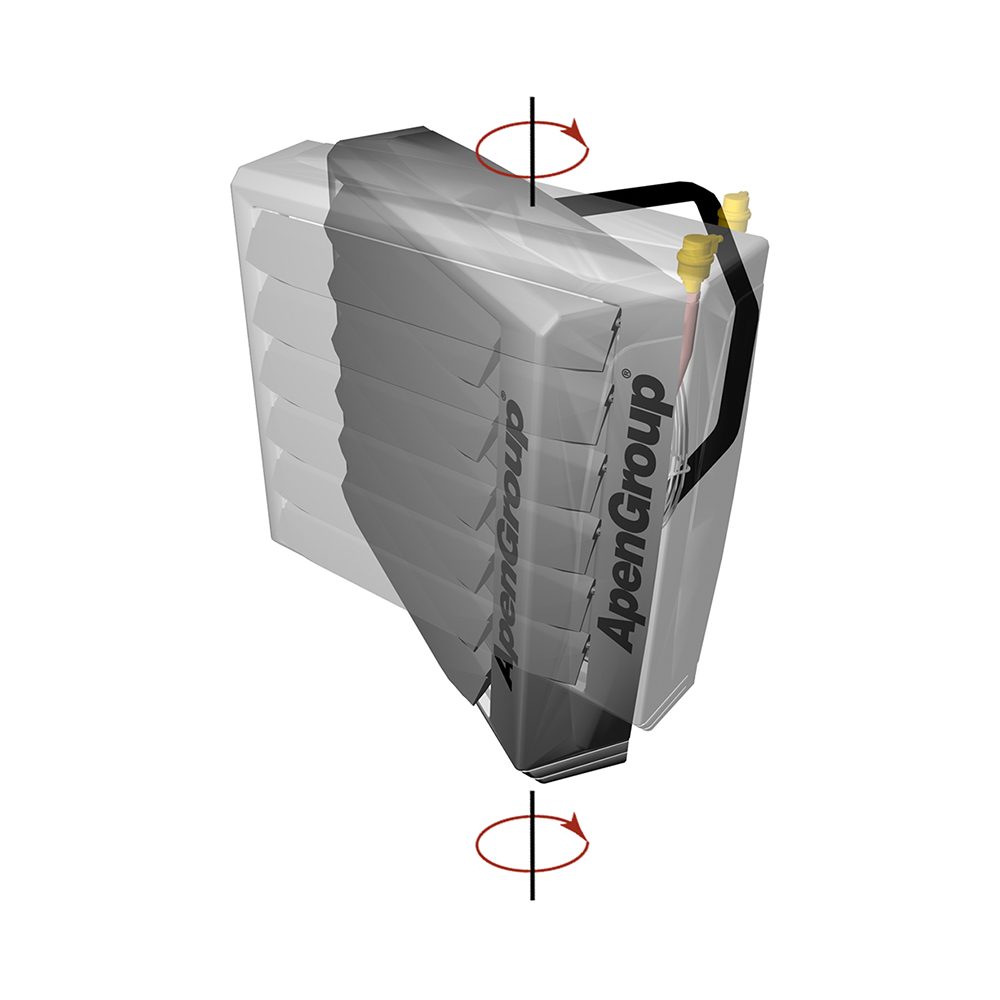

AX WATER FAN HEATERS
| MODEL | MAX. AIR FLOW RATE mc/h | AIR THROW DISTANCE m. | POWER SUPPLY |
|---|---|---|---|
| AX020 | 2.590 | 25 | 230V/1F/50Hz |
| AX025 | 6.150 | 25 | 230V/1F/50Hz |
| AX030 | 2.390 | 25 | 230V/1F/50Hz |
| AX040 | 5.100 | 25 | 230V/1F/50Hz |
| AX050 | 4.700 | 25 | 230V/1F/50Hz |
| AX070 | 8.600 | 25 | |
| AX090 | 8.000 | 25 |
